Structural engineering · Desktop

SlabLink

Preview only

Bring in one floor of a flat plate or flat slab from a DXF, and get back where it works, where it does not, and what to change, down to a rebar plan for the drawings.

  • Plate finite-element analysis with pattern live load.

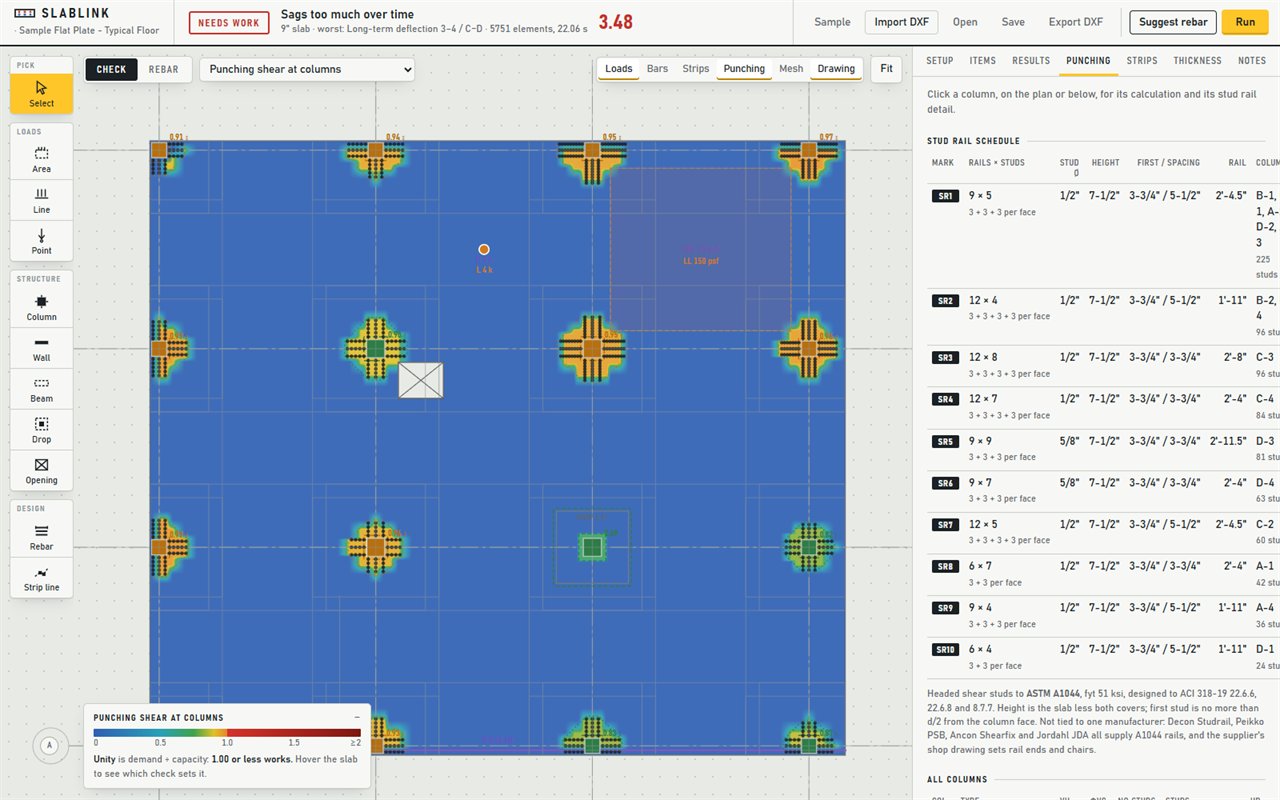

  • Punching shear at every column, with stud rails where needed.

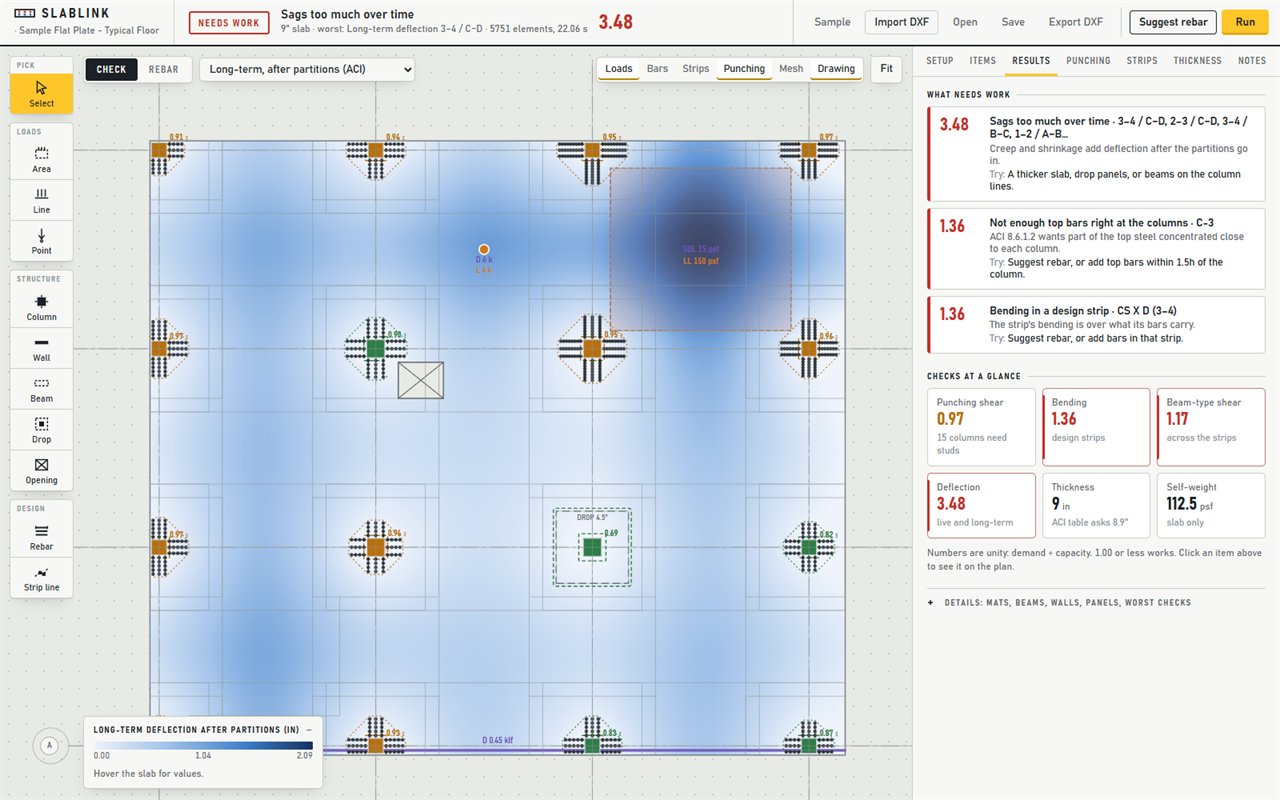

  • Long-term cracked deflection and a slab thickness study.

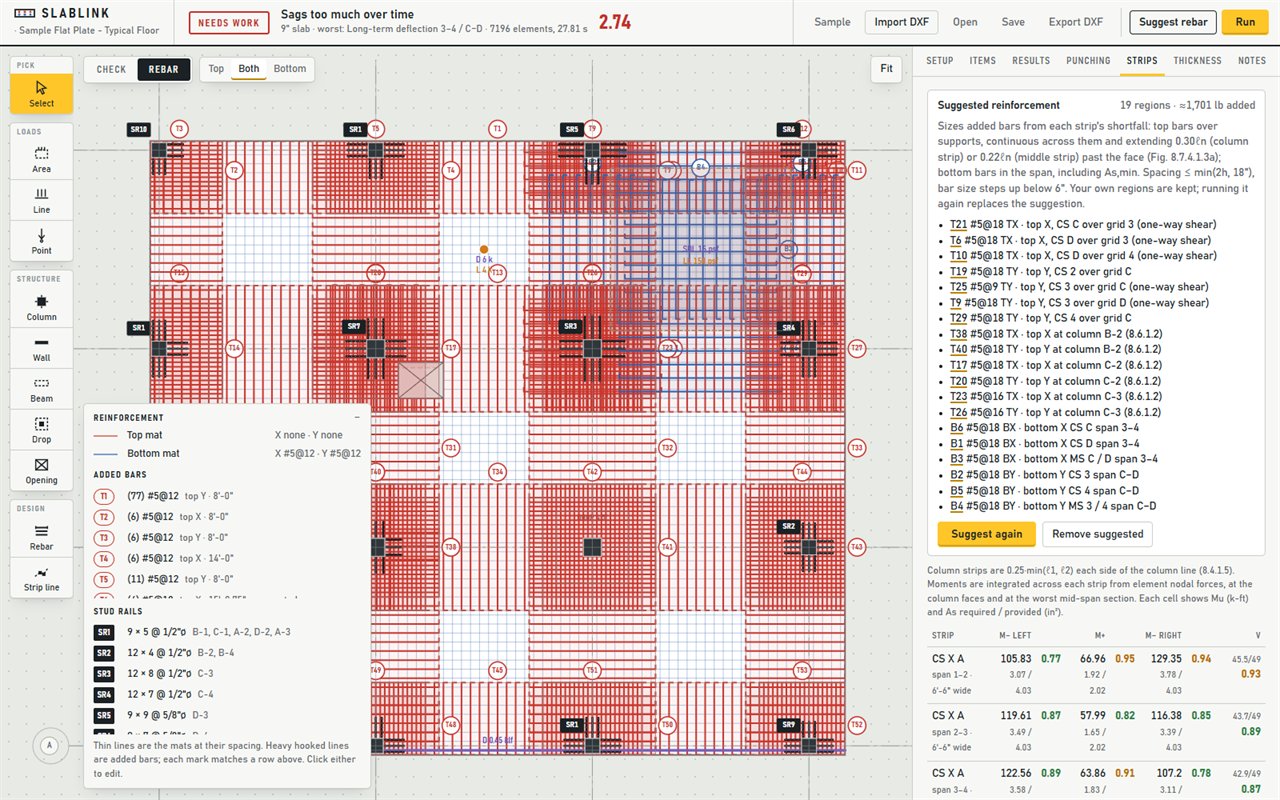

  • Suggests added top and bottom bars, then writes them back to the DXF.

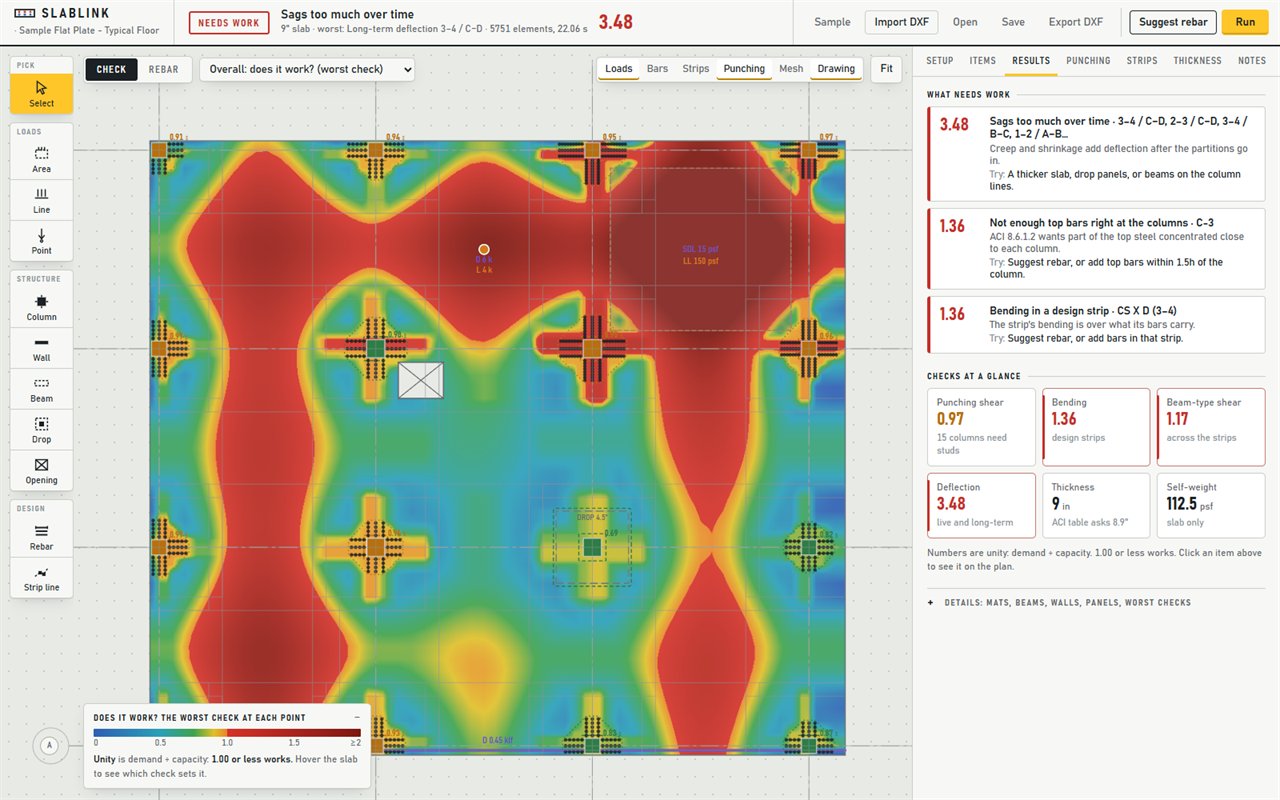

Where the floor works and where it does not, as a contour over the slab
Where the floor works and where it does not, as a contour over the slab
